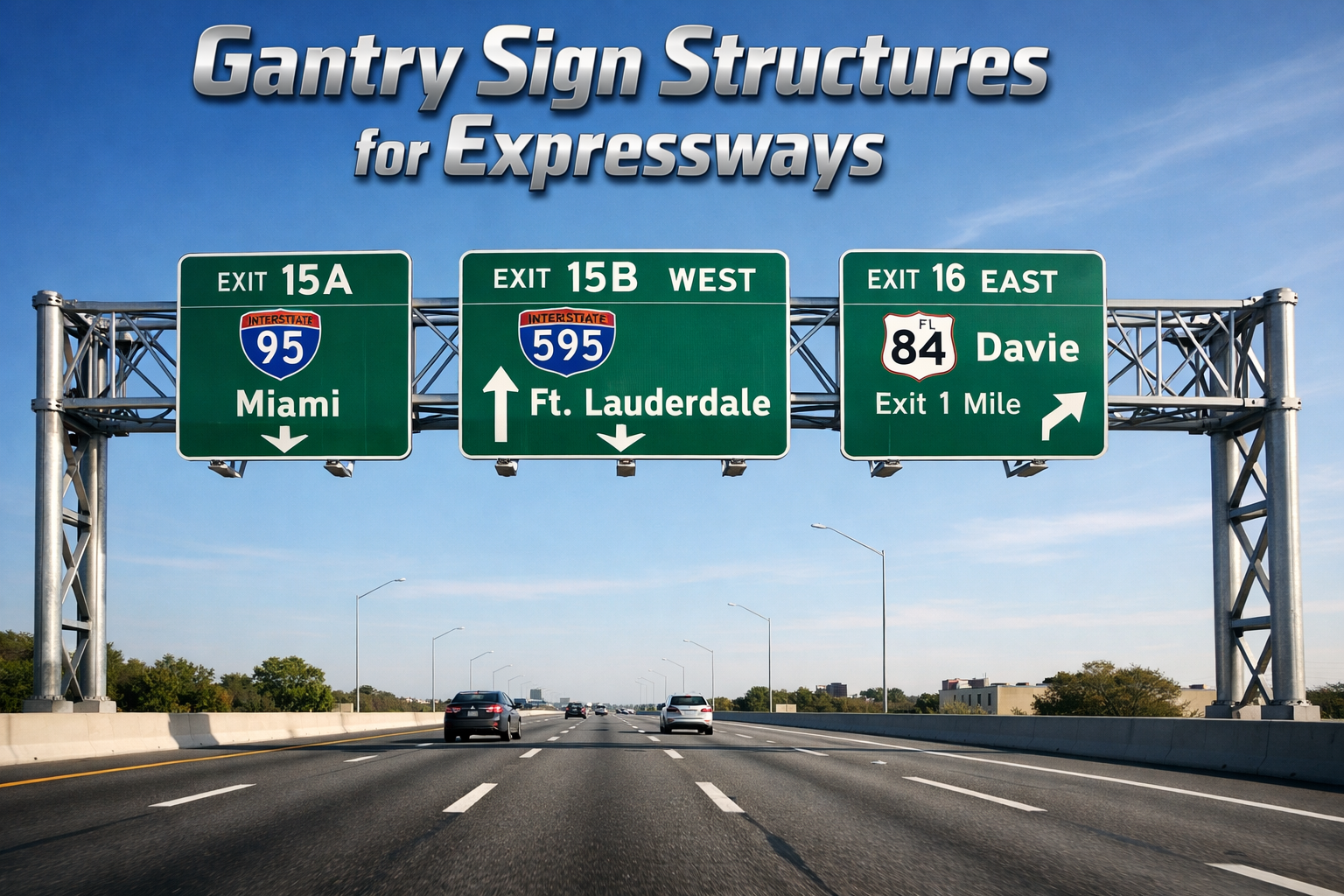

These structures allow traffic signs to be clearly visible across multiple lanes.

Gantry sign structures are a vital component of modern expressway infrastructure, designed to provide clear, high-visibility guidance to drivers traveling at high speeds. These overhead structures span across multiple lanes, ensuring that critical information such as directions, exits, lane usage, and safety instructions is visible to all road users.

What are Gantry Sign Structures?

Gantry sign structures are large overhead frameworks, typically fabricated from galvanized steel or aluminum, installed across highways and expressways. They support sign panels that display directional, regulatory, and informational messages to drivers. These structures are engineered to withstand heavy wind loads, vibrations, and extreme weather conditions while maintaining long-term durability.

Key Features

• High visibility across all lanes due to elevated placement
• Durable construction using galvanized steel or corrosion-resistant materials
• Retro-reflective signage for excellent day and night readability
• Weather-resistant design suitable for harsh environments
• Custom fabrication based on road geometry and requirements
• Compatible with ITS systems like VMS, cameras, and sensors

Types of Gantry Structures

Full Span Gantry: Covers the entire width of the roadway, ideal for wide expressways and multi-lane highways.

Cantilever Gantry: Supported from one side, suitable for locations with limited space.

Portal Gantry: Supported by columns on both sides, commonly used at toll plazas and junctions.

Smart Gantry Systems: Integrated with digital displays and sensors for real-time traffic management.

Applications

• Expressways and National Highways
• Toll plazas and FASTag lanes
• Urban flyovers and smart city roads
• Industrial corridors and SEZ zones
• Airport and logistics infrastructure

Benefits of Gantry Sign Structures

• Improves road safety by providing clear and early guidance
• Enhances traffic flow with lane-specific information
• Reduces roadside clutter by minimizing multiple sign installations
• Improves driver confidence and navigation experience
• Ensures long service life with minimal maintenance

Materials & Specifications

• Structure: Galvanized steel or mild steel with anti-corrosion coating
• Sign Panels: Aluminum sheets or ACP panels
• Reflective Sheeting: HIP, Type IV, or Diamond Grade
• Foundation: Reinforced RCC base for stability
• Standards: Designed as per IRC and MORTH guidelines

Why Choose Shital Signs?

• Expertise in highway and expressway signage solutions
• Custom-engineered gantry structures
• Compliance with Indian road safety standards
• High-quality materials and precision manufacturing
• End-to-end services including design, fabrication, and installation

Conclusion

Gantry sign structures are essential for ensuring safe and efficient travel on expressways. Their ability to provide clear, high-visibility information across multiple lanes makes them indispensable in modern road infrastructure. Investing in high-quality gantry systems leads to better traffic management, improved safety, and an enhanced driving experience.
