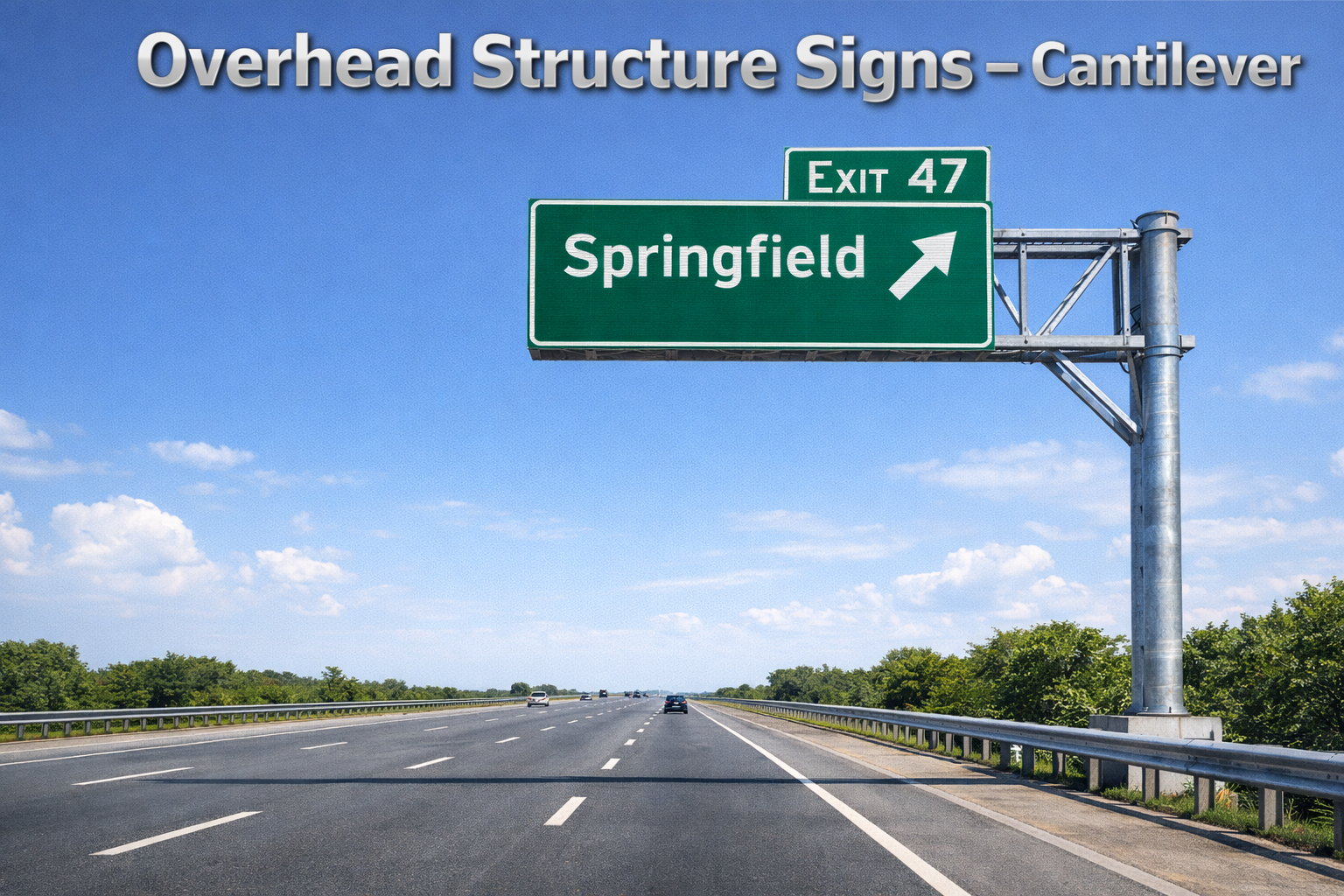

What are Cantilever Overhead Signs?

Cantilever overhead signs are mounted on a steel gantry that extends horizontally over the road from one side. These structures allow sign boards to be clearly visible above traffic lanes.

What are Cantilever Overhead Structure Signs?

Cantilever overhead structure signs are traffic sign systems mounted on a horizontal arm supported from one side of the road. These structures are designed to display directional, regulatory, and informational messages to drivers across multiple lanes. They are commonly installed on high-speed roads to improve navigation and traffic flow. :contentReference[oaicite:0]{index=0}

Importance of Overhead Cantilever Signs

On busy highways and multi-lane roads, roadside signage may not always provide sufficient visibility. Overhead cantilever structures ensure that drivers can clearly see important information well in advance, allowing them to make timely decisions and avoid sudden lane changes. These signs play a critical role in improving safety and reducing traffic congestion.

Key Features

• Single-side mounted structure for efficient use of space
• High visibility across multiple lanes
• Strong and durable construction using galvanized steel
• Designed to withstand wind loads and environmental conditions
• Retro-reflective or illuminated signage for night visibility
• Customizable size and design as per project requirements

Applications

• National highways and expressways
• Urban roads and flyovers
• Toll plazas and junction approaches
• Industrial and logistics corridors
• Smart city infrastructure projects

Benefits of Cantilever Overhead Structures

• Provides clear and early visibility to drivers
• Reduces roadside clutter by shifting signage overhead
• Cost-effective compared to full-span gantry systems
• Improves lane discipline and traffic flow
• Suitable for areas with limited median or roadside space

Materials & Construction

• Structure: Galvanized steel or mild steel with anti-corrosion coating
• Sign Panels: Aluminum sheets or ACP panels
• Reflective Sheeting: High Intensity or Micro Prismatic grades
• Foundation: RCC base designed for structural stability

As per IRC guidelines, overhead signs are mounted on structurally sound gantry or cantilever systems with proper height and clearance to ensure safety and standardization across highways. :contentReference[oaicite:1]{index=1}

Types of Cantilever Structures

• Single Arm Cantilever for standard directional signs
• Double Arm Cantilever for multiple sign panels
• Monotube Cantilever for sleek and modern design
• Heavy-duty cantilever structures for high-wind areas

Compliance & Standards

Overhead cantilever sign structures are designed according to IRC and MORTH standards to ensure proper sizing, placement, and visibility. These standards define material specifications, mounting height, and reflective requirements to maintain uniformity and safety across road networks in India.

Why Choose Shital Signs?

• Experienced manufacturer of overhead and highway signage
• Custom-designed cantilever structures for various applications
• Use of premium materials and advanced fabrication techniques
• Compliance with national and international standards
• End-to-end solutions including design, manufacturing, and installation

Conclusion

Overhead structure signs with cantilever systems are an efficient and reliable solution for modern traffic management. Their ability to deliver clear, visible information across multiple lanes makes them essential for highways and urban roads. Investing in high-quality cantilever signage ensures enhanced safety, improved navigation, and better traffic efficiency.
